• Die Cut Boxes / Patterns

    Videos Related to Packaging Design:

    How Boxes Are Made in Video

    https://www.youtube.com/watch?v=8i3riKvCYkM


    History of Packaging in 7 Minutes

    https://www.youtube.com/watch?v=7Shwzu0VpQg



    Product Development, Packaging and Marketing

    http://study.com/academy/lesson/what-is-product-packaging-in-marketing-definition-types-importance.html



    Packaging Design

    https://www.youtube.com/watch?v=ISsgokWVfzY

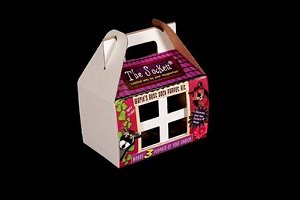

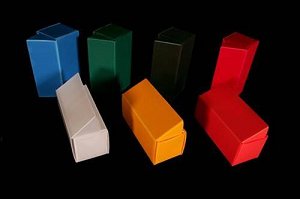

    What is a die cut box?

               a process used in manufacturing where material is cut or punched out with
                  a die (or a shape).  This piece opf material can be a developable surface
                  like a folding box.

                                                  Die Cut

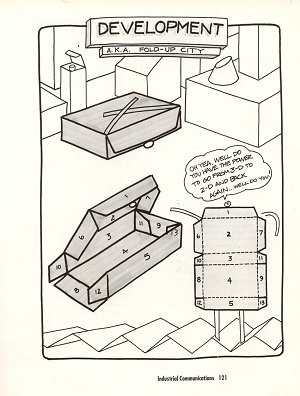

    Developable Surface-

                            a 3-d surface that can be unrolled or unfolded into a flat sheet without
                            distortion. (or a 2-d that can be rolled or folded into a 3-d)

    Die Cut  Die Cut


    Fold line (bend line)-
                     a dashed line that indicates a fold (sometimes requires scoring)

    Cut Line-
                     a solid line indicating a cut all the way through the material

    Scoring-
                     to cut halfway through a material in order to fold it along a fold/bend  line

    Perforation-
                    a manufacturing process where material is punctured for easy 'tearing off'
                      of material.
    Motif  -   a dominant theme or central idea.  A repeated figure or design,
                    architecture or decoration.

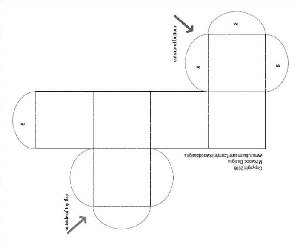

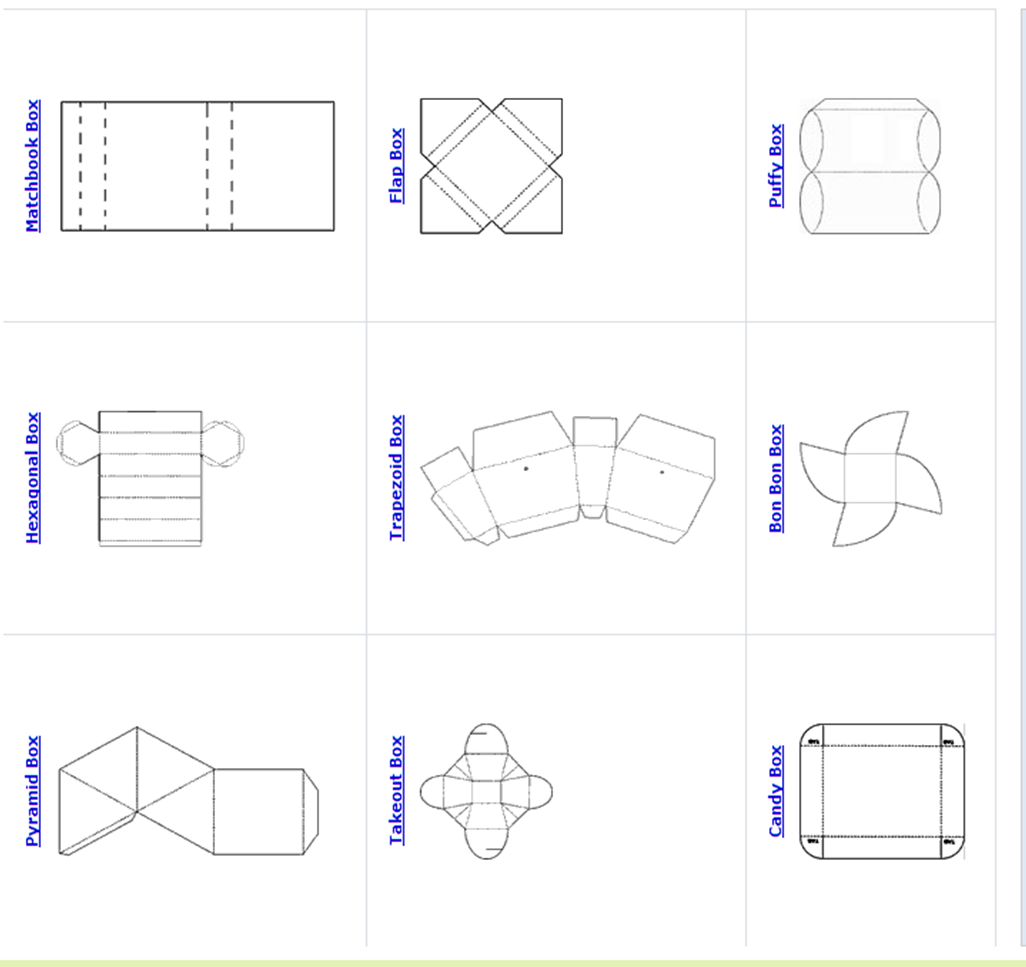

    Die Cut Pattern
            the drawing of the cut and fold lines of the die cut box

    Pattern
                                              Pattern
